How to find the correct laptop adapter?

Laptop Power Adapter or Charger is one of the most important things for your laptop. A Laptop Adapter does two things for your laptop, Firstly you can use your laptop running on AC / Mains power and secondly it charges the battery of your laptop. There can be times when your laptop adapter/charger might get blown off or damaged and becomes unusable, which can be due to improper voltage, power surge, faulty components etc.

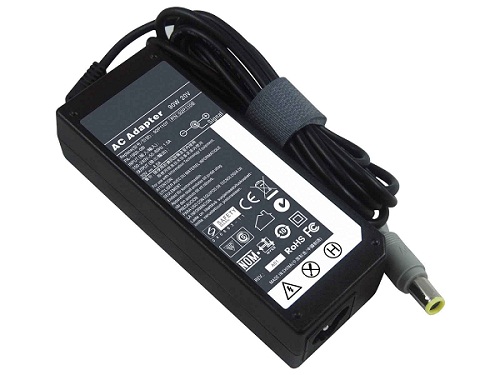

Laptop Adapter

Laptop Adapter / Charger

In this situation you may become helpless as you are unable to charge the battery of your laptop or use it with AC power. The only thing you can do here is to buy a new laptop adapter/charger for your laptop but it is not easy as you may think. If your laptop model is new and the same charger is available with the manufacturer then it is good but what if the original charger / adapter is not available from the manufacturer or the company. This can be due because of outdated laptop model or non-availability of the adapter. In this situation what you can do is to find a compatible power adapter for your laptop by carefully following the things that I have mentioned below, because if you plugged in any wrong adapter in your laptop then it can permanently damage your laptop.

Important Parameters to Look for in a Compatible Laptop Power Adapter / Charger

Here are some important parameters to take into account when buying a compatible laptop adapter / charger.

Pin Type

All Laptops have different pin sockets for power. Also power adapters do comes with different pin sizes, so first thing is to make sure that the power adapter pin matches the laptop power pin socket. Here are some different pin types shown in the picture.

laptop adapter pins

Laptop Charger Pin Types

How to Find Out Connector Pin Size in Power Adapter

There are two parameters required to find out the pin size in connector for a power adapter. The first is the outer diameter of the pin and the second one is the inner diameter of the pin. Both are measured in mm and you can measure it with the help of a good precision scale.

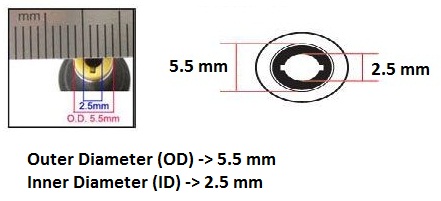

In the image below you have a connector of pin size of 5.5mm & 2.5mm. Here 5.5mm is the outer diameter and 2.5mm is the inner diameter of the pin.

Outer Diameter (OD) -> 5.5mm

Inner Diameter (ID) -> 2.5mm

Measuring Pin Size of Laptop Power Adapter

So this way you can find out the pin size of any power adapter

Input Voltage

Input voltage is the voltage supplied to your power adapter. In India usually it is 100-240V~. So make sure the adapter you are buying is having this value. Input voltage is always in AC (Alternating Current). Voltage is measured in Volts (V).

Output Voltage

Output voltage is the voltage supplied by the power adapter and it is always in DC (Direct Current). Make sure that the output voltage matches the output voltage specified for the particular laptop model.

Current

It is most important thing that should be taking care of, which is the current and it is measured in Amperes (A). You should see that the current (A) of the compatible power adapter matches the current required by the laptop. This you can consult with your laptop manual or look at the value that is specified in your old or damaged original power adapter. This value should not be varied a little bit otherwise you might end up frying your laptop components.

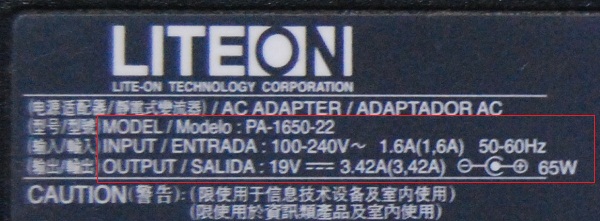

adatper label

Look for Voltage & Current

Power (Watt)

This is amount of power consumed by your laptop adapter and is it is measure in Watts (W). You do not need to match this value as it will come out the same as with your original power adapter, if you have correctly matched the output voltage and current. Power is calculated as

P = V x I

Where P –> Power, V –> Voltage, I –> Current

For above shown power adapter power is calculated as

P = 19 x 3.42 = 64.98 = 65 W (approx.) which is same as shown in the picture above.

Note: There are some universal laptop power adapters or chargers also available in which you can change the voltage and ampere accordingly with the help of a knob. I do not recommend them and should also avoid them at any cost.
